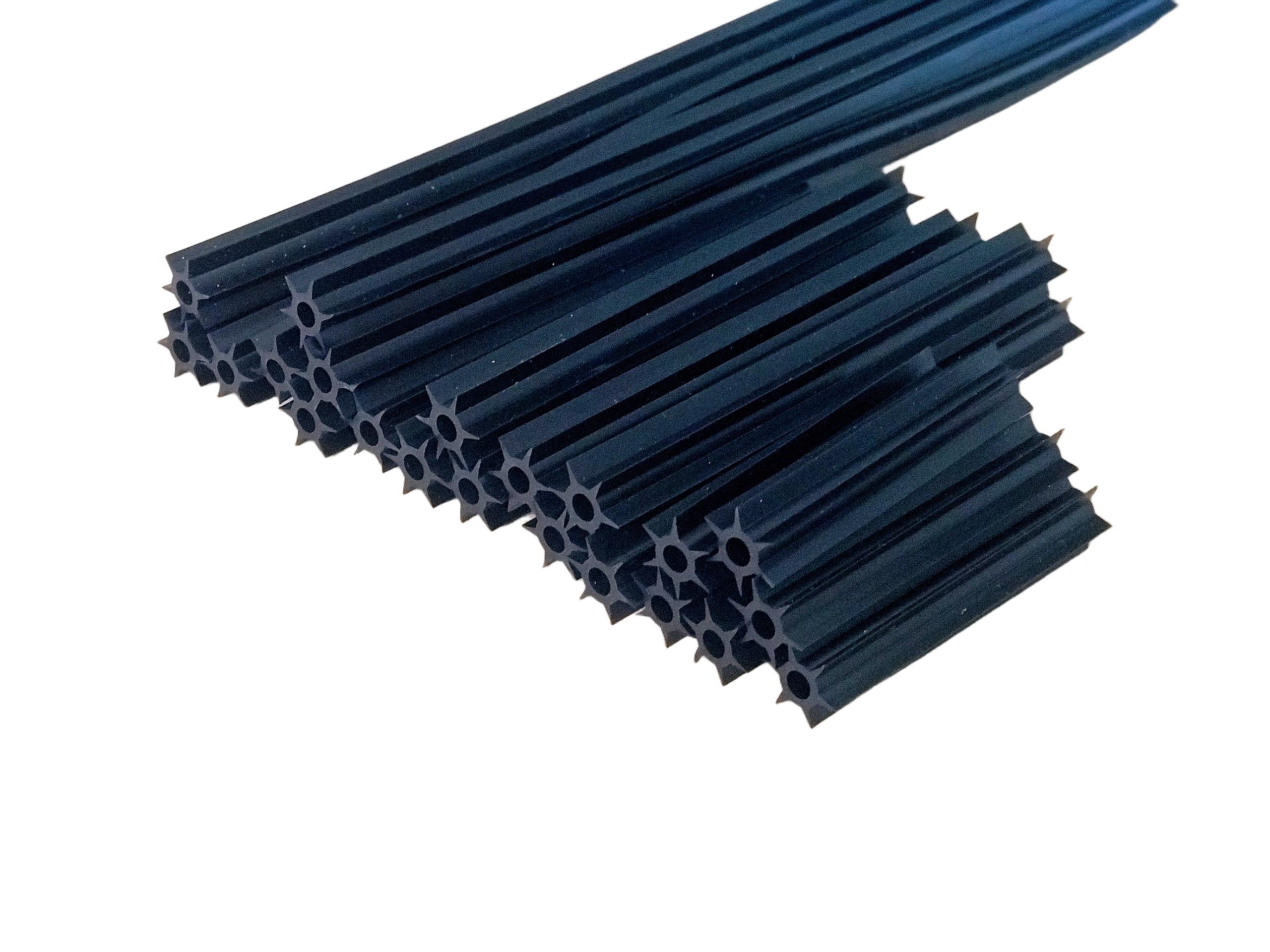

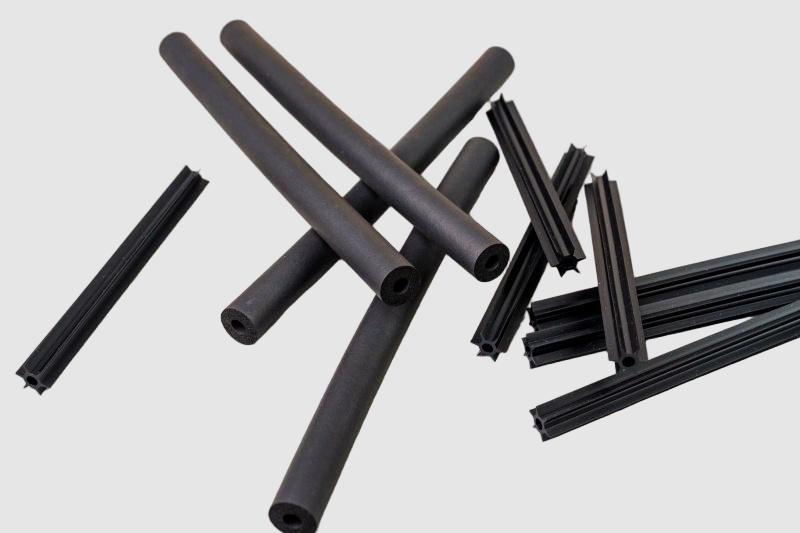

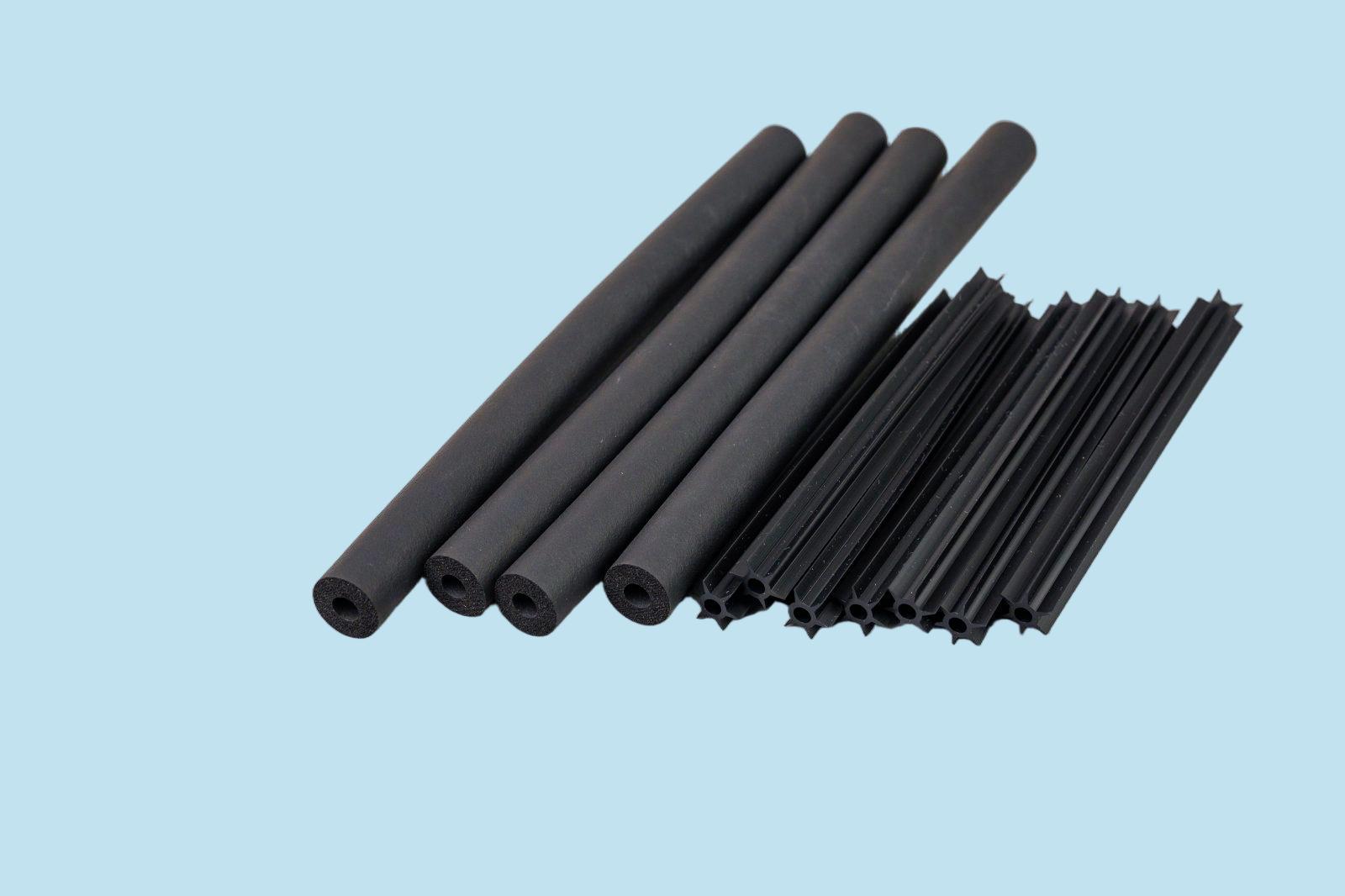

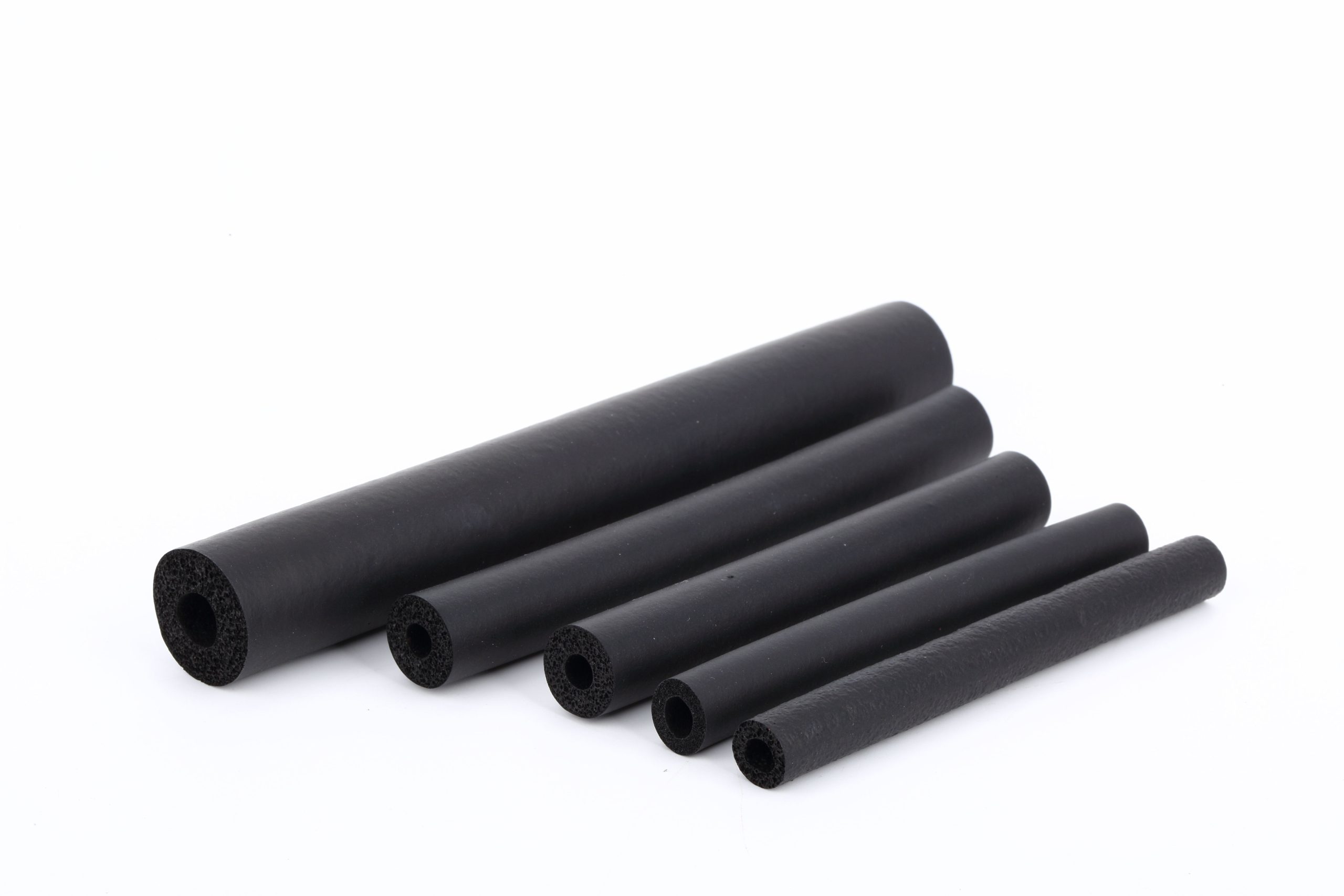

Automotive Cable Protective Sleeve

This series is an external protective sleeve designed for automotive wire harnesses, brake lines, and industrial hydraulic hoses, providing an additional layer of protection against abrasion and environmental exposure. Made with precision-molded engineering plastic sheaths, the sleeve closely covers the cable or hose surface to help isolate moisture, dust, oil, corrosive chemicals, and other external contaminants that can accelerate material aging and damage.

Beyond basic protection against scratches, friction, and stone chips, the sleeve maintains stable performance under demanding conditions, including extreme temperature variations from -40°C to +150°C, high humidity, and oily environments. Its protective structure helps reduce external wear and environmental damage, supporting longer service life for internal cables, hoses, and connected components.

Automotive Cable Protective Sleeve Assembly Key Features

Abrasion and Environmental Protection

The protective sleeve provides a durable barrier against abrasion, scratches, stone chips, UV exposure, ozone, moisture, dust, oil, and other environmental contaminants. It is designed to protect cables, wire harnesses, brake lines, and hoses from external wear during long-term operation in demanding automotive and industrial environments.

Flexible and Corrugated Structures

Different structural options, including flexible, corrugated, and slotted designs, can accommodate different cable routing and installation requirements. The sleeve can follow curved or complex routing paths while providing consistent external protection. Structure, inner diameter, outer diameter, and wall thickness can be selected according to the application.

Heat, Oil and Chemical Resistance

The sleeve is designed to maintain stable protective performance in environments exposed to heat, oil, moisture, and chemical agents. With an operating temperature range of -40°C to +150°C, it is suitable for applications where cables and hoses are exposed to significant temperature changes and oily or humid conditions.

OEM Customization

We provide customized protective sleeve solutions based on specific cable and application requirements. Customization can include material selection, inner diameter, outer diameter, wall thickness, structure, flexibility, color, and packaging. Flame-retardant options such as UL94 V0 can also be considered where required by the application.

Automotive Cable Protective Sleeve Applications

Automotive cable protective sleeves are used where cables, hoses, and control lines are exposed to abrasion, vibration, moisture, oil, heat, and other environmental factors. The sleeve structure can be selected according to the routing space, flexibility requirements, and operating conditions of the application.

Wire Harness Protection

Protects automotive wire harnesses from abrasion, dust, moisture, oil, and engine-bay heat. The protective sleeve helps prevent external damage where wiring is routed around engines, chassis components, and other moving or exposed areas.

Control Cable Protection

Used for Bowden cables and other mechanical control cables that require both protection and flexibility. The sleeve helps reduce friction and external wear while allowing the cable to follow curved or confined routing paths.

Brake Line and Hose Protection

Provides an additional protective layer for brake lines, hydraulic hoses, and related components exposed to vibration, abrasion, oil, and road debris. It helps reduce surface damage in areas subject to continuous movement and environmental exposure.

Engine Bay Cable Protection

Designed for cable and hose routing in high-temperature engine compartments. The sleeve helps protect components from heat, oil, moisture, and chemical exposure while maintaining reliable protection across a temperature range of -40°C to +150°C.

Custom Automotive Cable Protective Sleeve

Keli manufactures custom automotive cable protective sleeves according to the cable structure, routing conditions, and protection requirements of each application. From material and dimensions to sleeve structure and flexibility, we can adjust the design to fit different cable and hose assemblies.

Customization options include:

Material: Select suitable engineering plastics according to temperature, oil, chemical, and environmental requirements.
Inner & Outer Diameter: Customized to match cable, wire harness, or hose dimensions and available installation space.
Wall Thickness: Adjusted according to required protection, flexibility, and routing conditions.
Sleeve Length: Supplied to specified lengths for efficient assembly and installation.

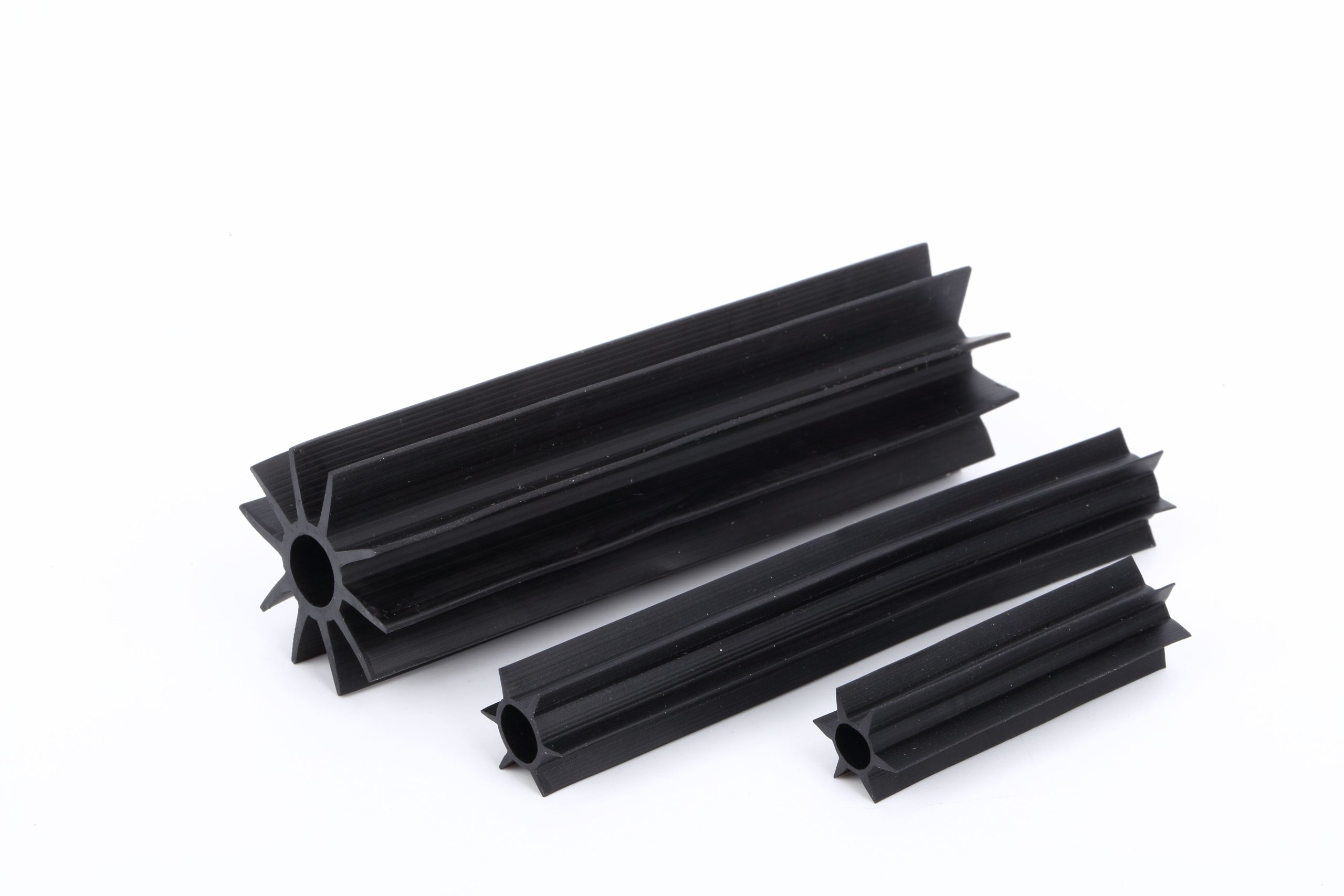

Structure: Flexible, corrugated, or slotted designs for different routing and installation needs.
Flexibility: Customized bending characteristics to accommodate curved and confined cable paths.
Color & Packaging: Customized for identification, assembly, and OEM packaging requirements.
Flame Retardancy: Options such as UL94 V0 can be considered for applications with specific flame-retardant requirements.

With in-house manufacturing and engineering capabilities, Keli supports OEM and application-specific protective sleeve development, from dimensional requirements and material selection to final production.

Need a Custom Automotive Cable Protective Sleeve?

Tell us your required material, ID/OD, wall thickness, structure, flexibility, and application conditions. Our engineering team can develop a protective sleeve to match your cable or hose assembly.
