High-Strength Steel Wire Rope for Control Cable Inner Cores

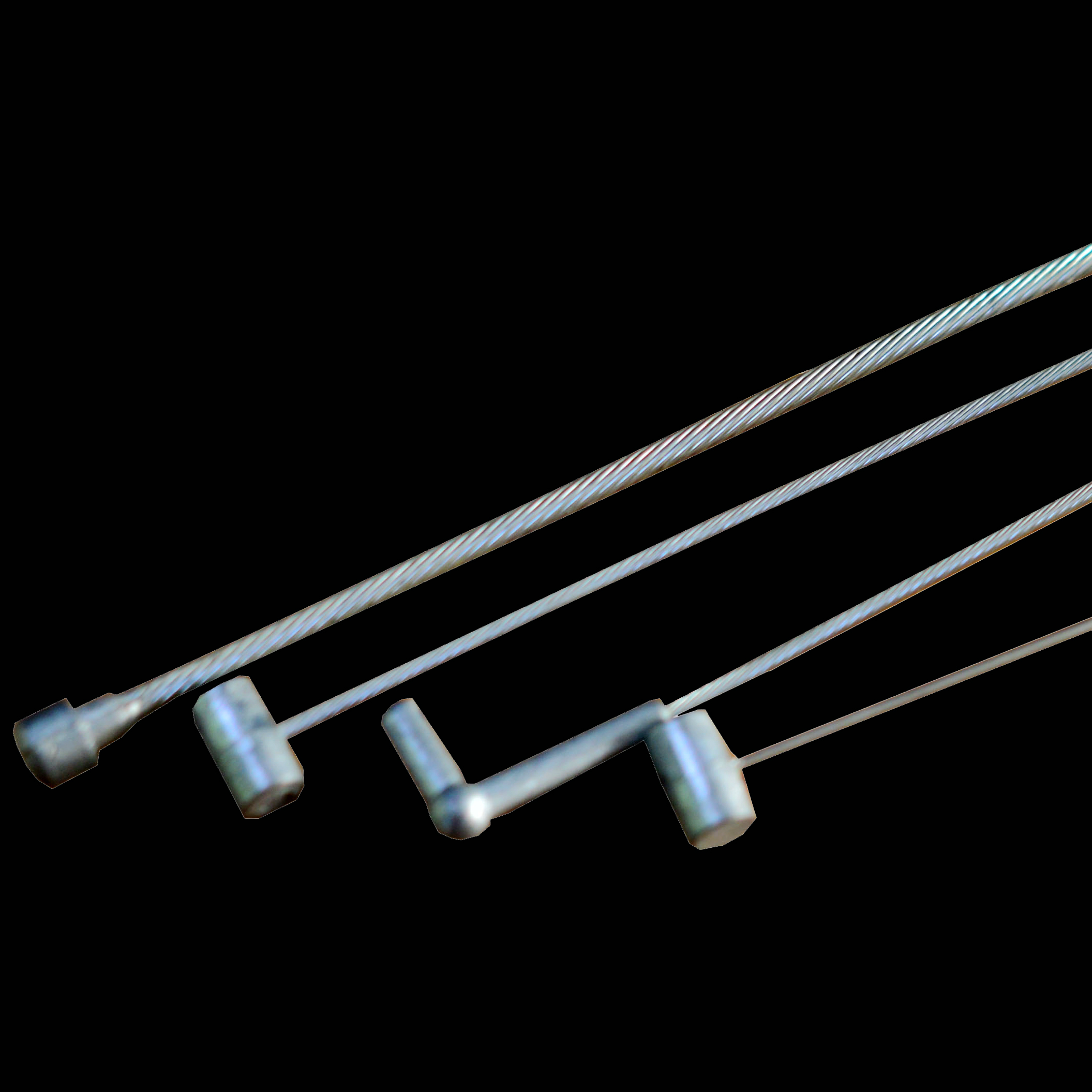

Steel wire rope for control cables is the flexible inner core used to transmit push and pull forces between a control mechanism and its actuator. Precision-stranded from high-strength carbon spring steel or stainless steel wire, it combines tensile strength, flexibility, fatigue resistance, and controlled dimensional accuracy. It is commonly used inside automotive and mechanical control cables for applications such as door locks, seat adjustment, hood release, trunk release, braking, gear shifting, and other remote-control mechanisms. Keli provides customized wire rope cores with different strand structures, diameters, coatings, and materials according to cable design and application requirements.
Steel Wire Rope for Control Cables: Key Performance Features
Applications of Steel Wire Rope for Control Cables
Steel wire rope serves as the flexible inner core of control cables where reliable force transmission, smooth movement, and repeated operation are required. Its stranded construction allows the inner wire to follow curved cable routing while maintaining stable mechanical performance.
Automotive Control Cables
Steel wire rope is widely used as an automotive control cable inner wire for automotive door lock cable systems, hood releases, trunk and tailgate systems, seat adjustment, parking brakes, and gear-shift mechanisms. Its combination of strength and flexibility supports reliable mechanical actuation in confined vehicle spaces.

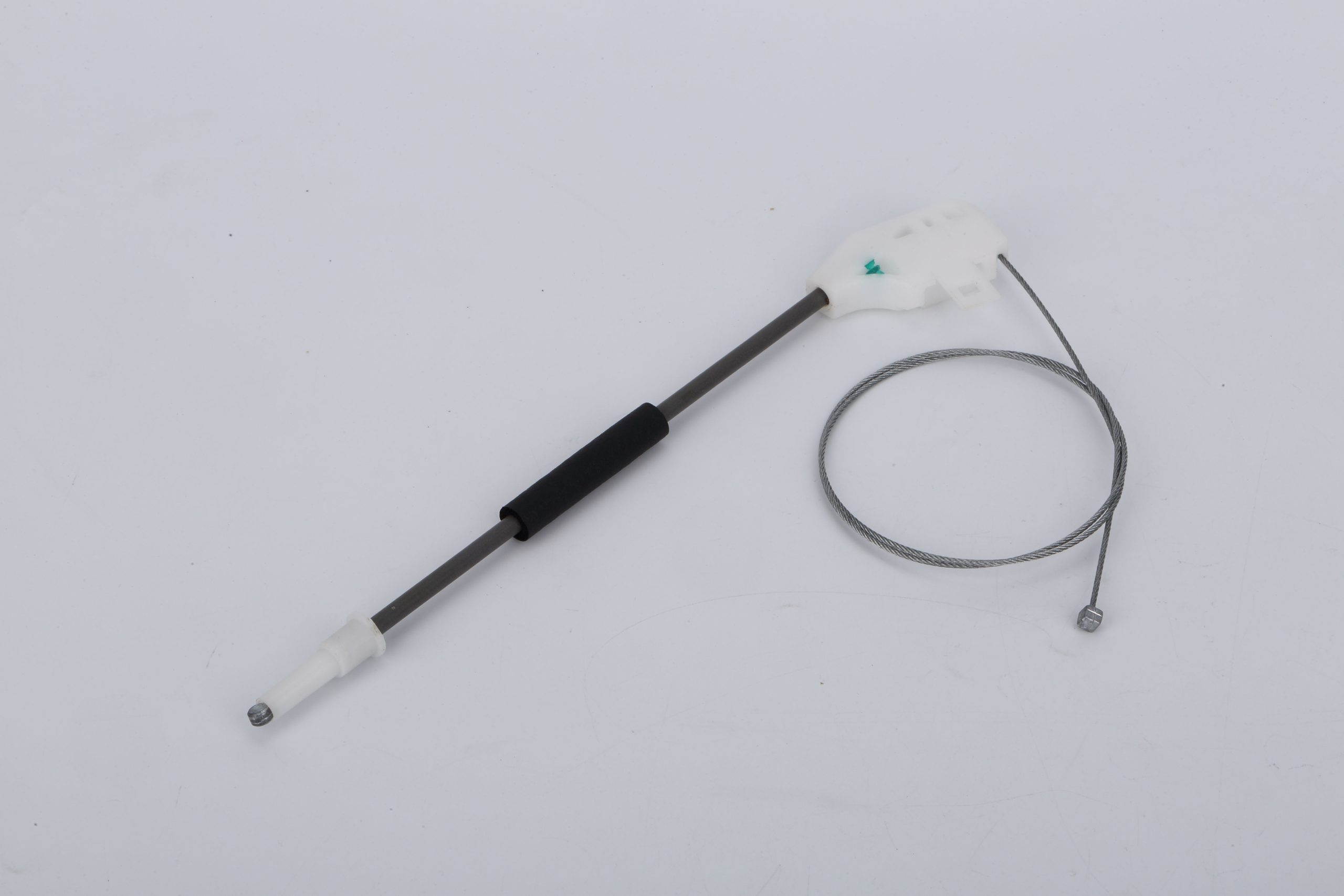

Door, Seat, and Release Mechanisms
For door lock, seat adjustment, hood release, and trunk release systems, the inner wire must move smoothly through curved or compact cable routes. A precision-stranded structure helps transmit the required pulling force while maintaining consistent movement during repeated operation.
Mechanical Control Systems
The wire rope can be used in mechanical control cables for remote actuation where direct mechanical linkage is difficult to install. Its flexible construction accommodates bends and routing changes while providing the tensile strength required for repeated push-and-pull operation.
Custom Push-Pull Cable Assemblies
Steel wire rope can be integrated with different outer casings, conduits, coatings, fittings, and end terminals to create complete customized push-pull cable assemblies. Keli can adjust the inner wire structure and specifications according to cable length, routing, operating force, flexibility, and application requirements.
Steel Wire Rope for Control Cables Technical Specifications & Process Features
Material Grade
We offer steel wire rope in high-strength carbon spring steel and stainless steel to meet different requirements for tensile strength, flexibility, corrosion resistance, and service environment. Material selection can be matched to the control cable structure and application.

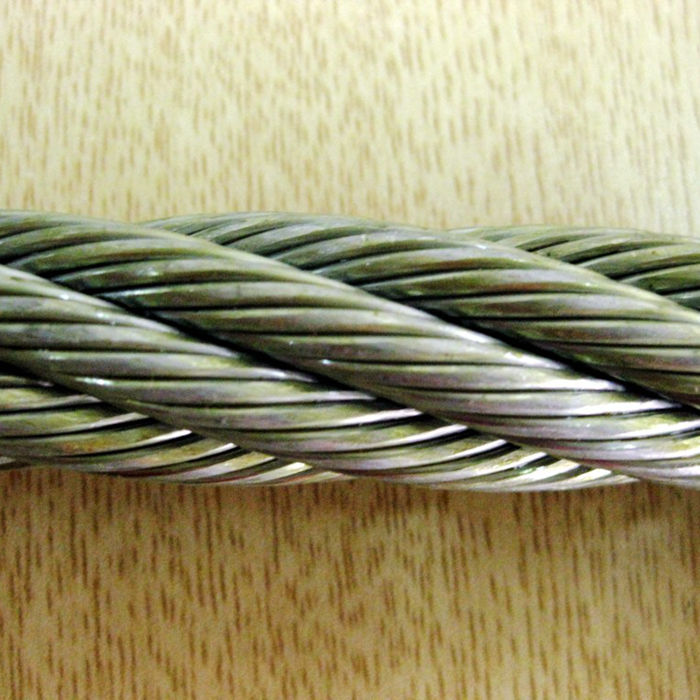

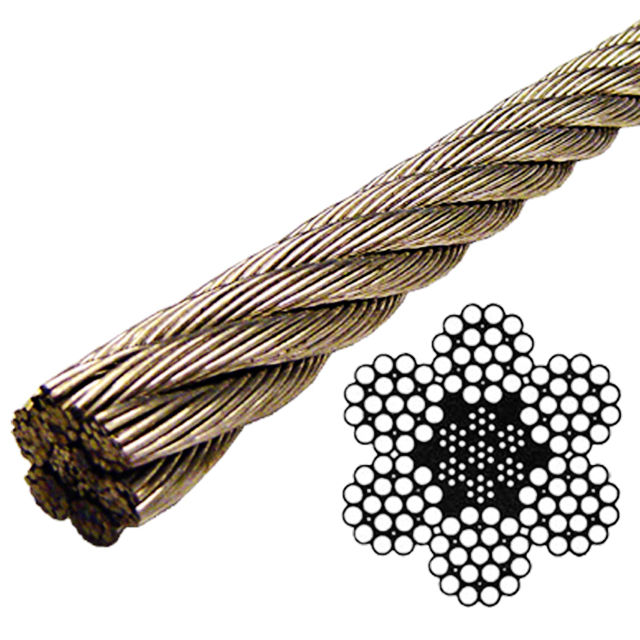

Stranding Structure
The wire rope is precision-stranded from multiple steel wires to provide a balance of strength, flexibility, and fatigue resistance. Strand count and construction can be customized according to the required cable performance, bending radius, operating force, and routing conditions.
Surface Coating Process (Core Highlight)
Different surface treatments are available to improve corrosion resistance and surface performance. Galvanized and Dacromet treatments can be selected according to the application environment and compatibility requirements of the control cable.

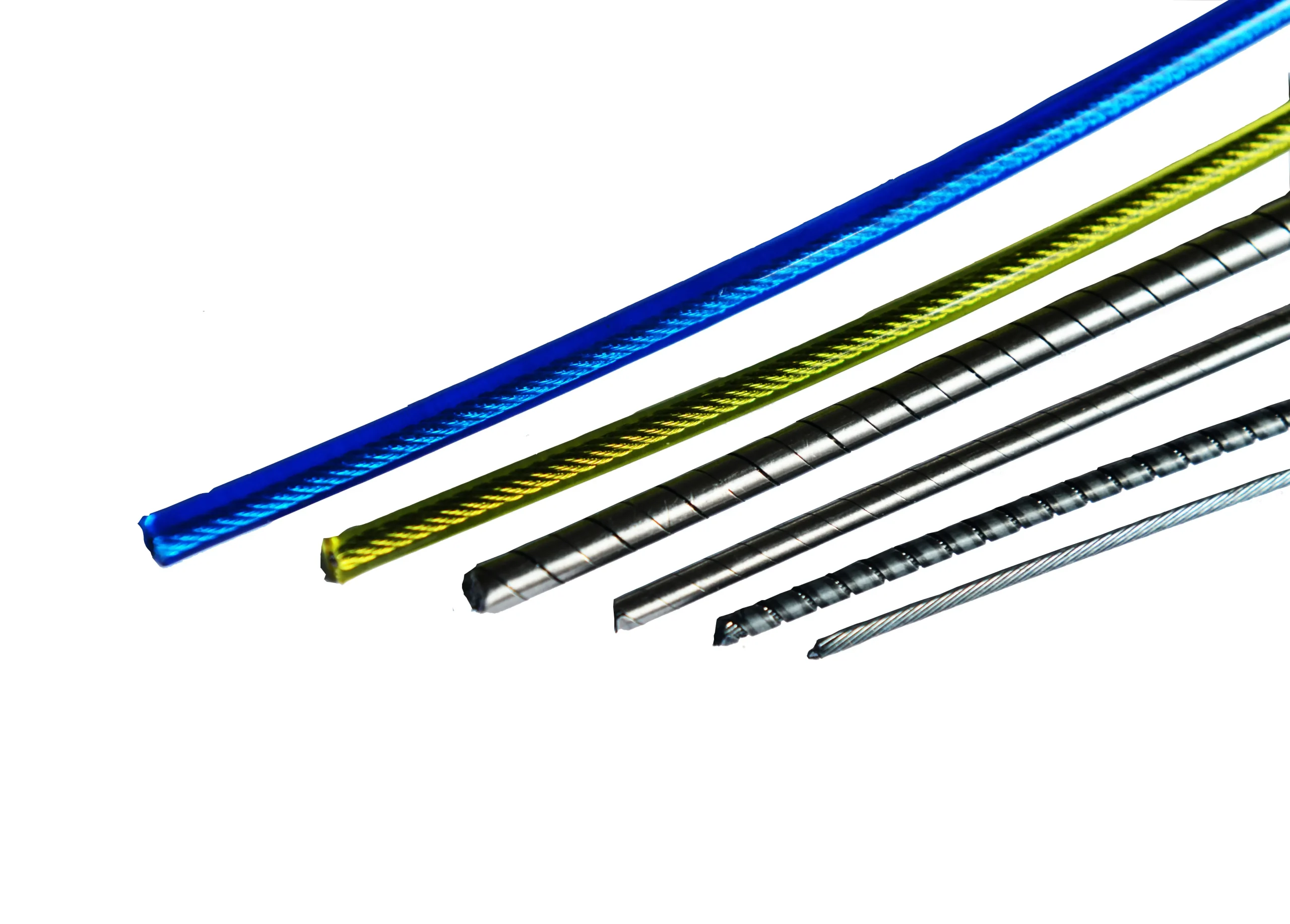

Polymer coating
For additional protection and smoother movement inside the outer casing, we provide optional polymer coatings including PVC, PP, PA6, PE, TPE, and TPEE. Coating material, thickness, and color can be selected according to the required flexibility, wear resistance, friction performance, and operating environment.
Strict Tolerance Control
We maintain controlled dimensional tolerances for wire diameter, coated outer diameter, and overall construction to support consistent assembly with inner tubes, outer casings, and end fittings. Wire diameter and dimensional requirements can be customized according to the control cable design and application.
Custom Steel Wire Rope for Control Cables
Keli provides engineering-based customization of steel wire rope cores for automotive and mechanical control cable applications. Rather than supplying only standard wire rope sizes, we can adjust the inner wire structure and specifications to match the complete cable design and operating requirements.
Customization options include:
- Wire Material: Carbon spring steel or stainless steel according to strength and corrosion requirements.
- Wire Diameter: Customized to match the inner tube, outer casing, and required operating force.
- Strand Construction: Strand count and rope construction can be adjusted for the required flexibility, strength, and fatigue resistance.
- Surface Treatment: Galvanized, Dacromet, or other suitable treatments based on the working environment.
- Polymer Coating: PVC, PP, PA6, PE, TPE, or TPEE coating options for protection, friction control, and assembly compatibility.

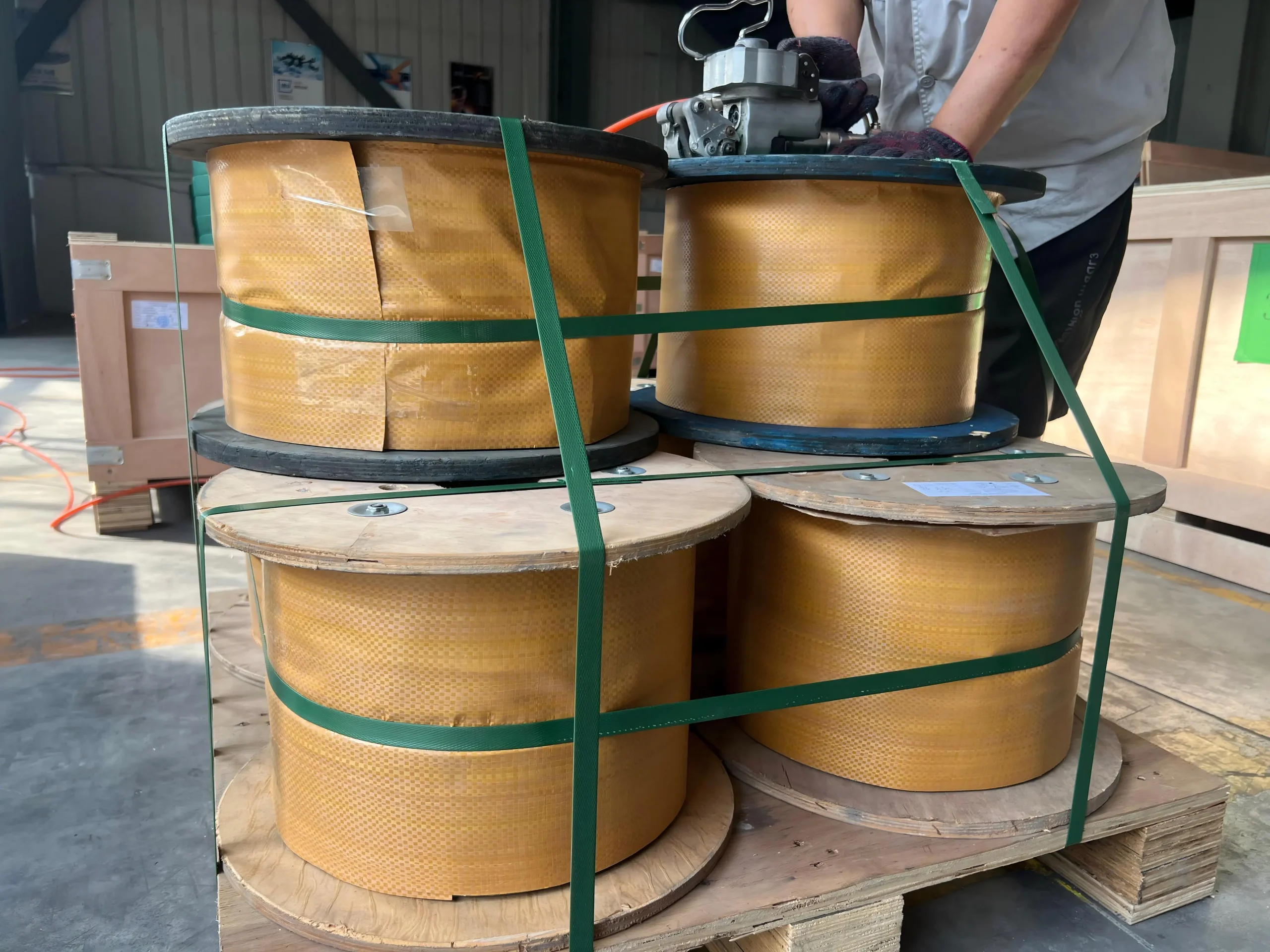

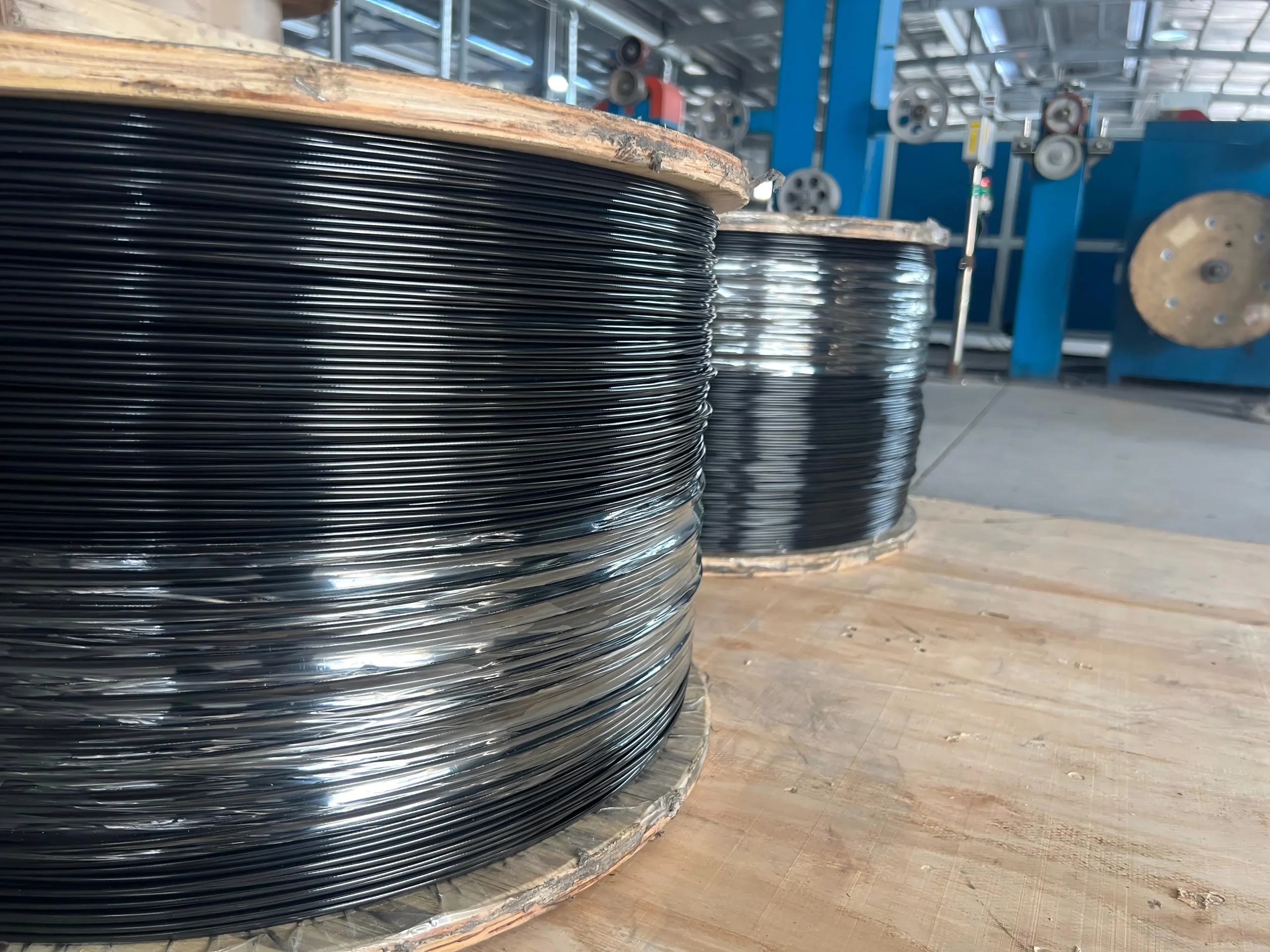

- Length & Packaging: Customized cable-core lengths, winding, labeling, and packaging according to production and delivery requirements.
Keli’s engineering team can work with customer drawings, samples, technical specifications, or application requirements to develop a suitable control cable inner core. We can also coordinate the wire rope with the push-pull outer casing, fittings, and complete control cable assembly to achieve the required routing, bending performance, force transmission, and operating life.
Need a Custom Steel Wire Rope for Your Control Cable?
Share your drawing, sample, dimensions, or application requirements with Keli. Our engineering team can help develop the right wire rope structure, coating, and specifications for your control cable.
